واجهة

3*GE LAN Ports
1*GE WAN Port

زر

1*WiFi On/Off button
1*Reset/WPS button

مزود الطاقة

Power Input: 100-240V—50/60Hz
Power Output: DC 12V==2A

البعد

Package Box: 390*198*70mm（L*W*H)
Device: 220*141.5*49mm（L*W*H)

ثقل

Gross Weight: 810g
Net Weight: 350g

هوائي

4*5dBi External Dual Band Antennas

مؤشر ال اي دي

1*WAN、1*LAN、1*Wi-Fi/WPS、1*SYS

Standard&Protocol

Wireless Standards:IEEE 802.11ac/n/a 5GHz
IEEE 802.11n/g/b 2.4GHz
Wired Standards:IEEE 802.3, IEEE 802.3u

تردد

5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps

Transmit Power

CE:
<20dBm （2.4G）
<23dBm （5G）
FCC:<30dBm

لاسلكي الأمان

WPA-PSK, WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS Fast Encryption

WAN Connection Type

Dynamic IP/Static IP/PPPoE
Connection Type Auto Detection
Broadband Account and Password Migration

Working Mode

Router/AP/Universal Repeater/WISP

إدارة

Local Management
Remote Management
Tenda APP

Basic Function

MU-MIMO
SSID Broadcast and Hide
Beamforming
Signal Power Adjustment

Virtual Server

UPnP
DMZ
Port Forwarding

دي إتش سي بي

DHCP Server and Client
DHCP Client List
DHCP Address Reservation

DDNS

DynDns, NO-IP, Oray.com, 3322.org, 88ip

VPN

PPTP Client
PPTP Server
L2TP Client

Firewall

Forbid UDP Flood Attack
Forbid TCP Flood Attack
Forbid ICMP Flood Attack
Forbid WAN Ping from Internet
PPTP Pass Through
L2TP Pass Through
IPSec Pass Through

الميزات

Smart Wi-Fi Schedule
Smart Power Saving
Smart LED On/Off

أخرى

Bandwidth Control
MAC Address Filter
IP and MAC Address Binding
IPTV
Black/White List
MAC Clone
Static Routing
System Log
Network Time
Backup/Restore Settings
System Upgrade Online

شهاده

CE, FCC, RoHS, BSMI, NCC, EAC, IC

Default Settings

Default Access Address: tendawifi.com or http://192.168.0.1

Package Content

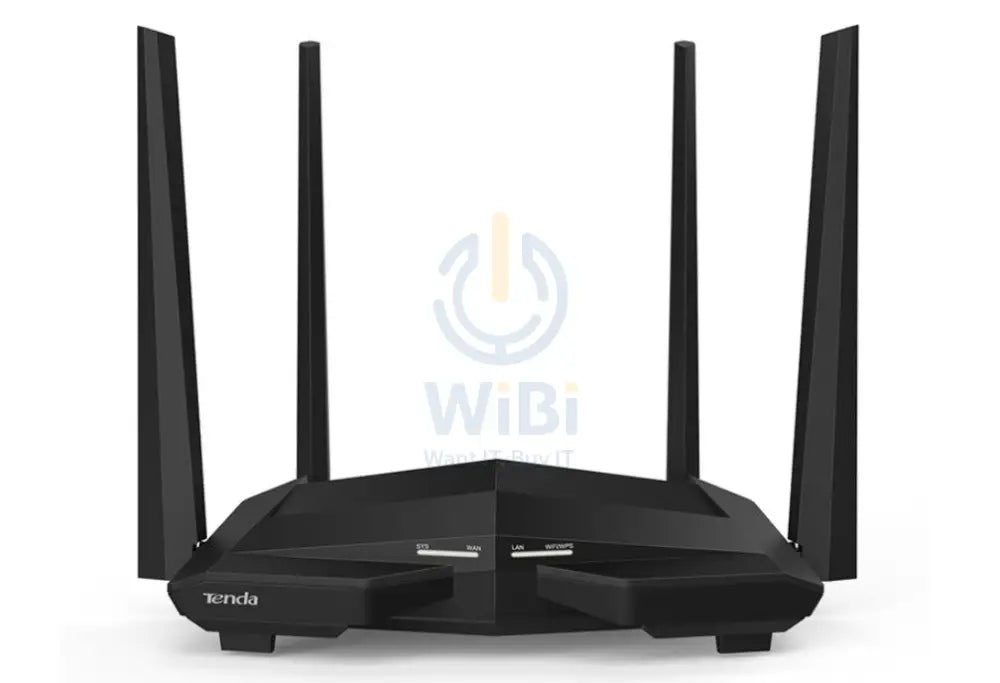

AC1200 Smart Dual-Band Gigabit WiFi Router
Power Supply
Ethernet Cable
Quick Installation Guide

متطلبات النظام

Microsoft Windows XP, Vista™ or Windows 7, Windows 8/8.1/11
MAC OS, UNIX or Linux

بيئة

Operating Environment:0℃~40℃
Storage Environment:-40℃~70℃
Operating Environment:10%~90% RH non-condensing
Storage Environment:5%~90% RH non-condensing
