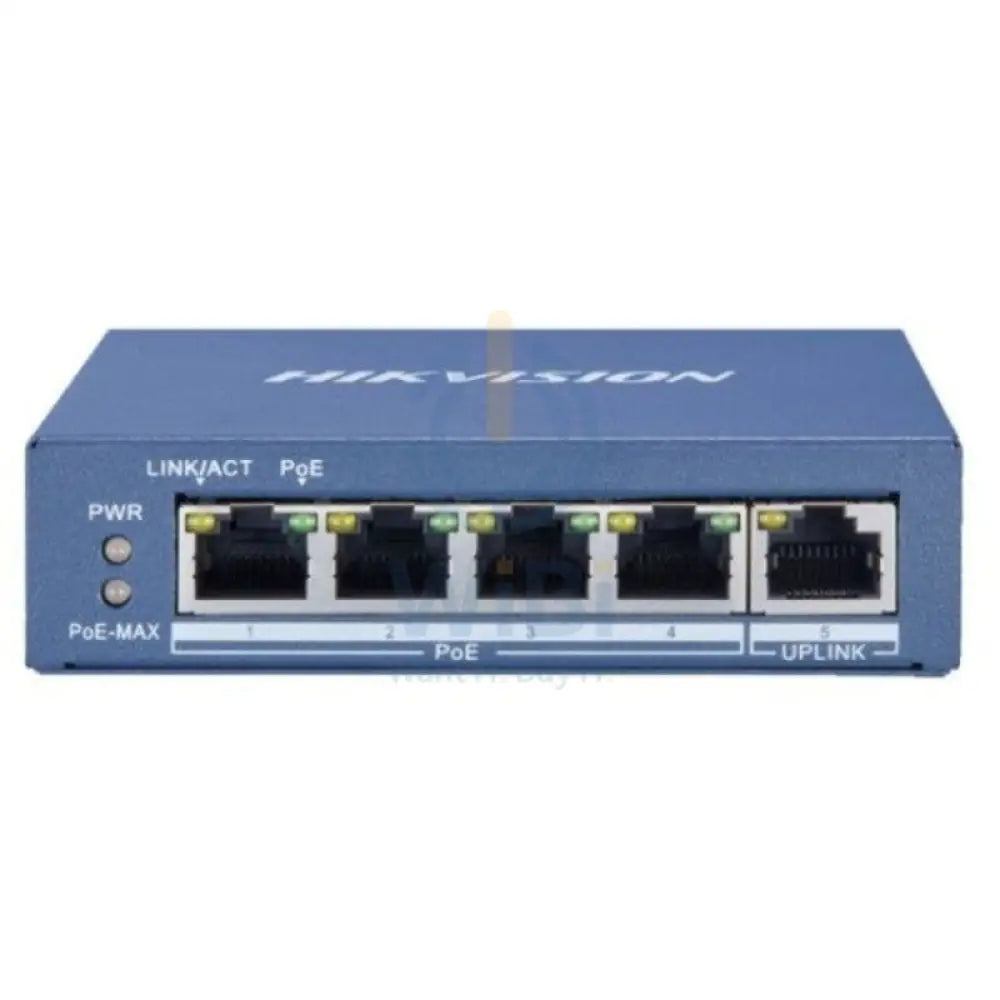

Hikvision 4 Port Gigabit Unmanaged Poe Switch

Ports:4 × Gigabit PoE ports, and 1 × Gigabit RJ45 port

Port Type:RJ45 port, full duplex, MDI/MDI-X adaptive

StandardIEEE: 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z

Forwarding Mode:Store-and-forward switching

MAC Address Table:2 K

سعة التبديل: 10 جيجابت في الثانية

Packet Forwarding Rate:7.44 Mpps

Internal Cache:1 Mbits

PoE Power Supply

PoE Standard:IEEE 802.3af, IEEE 802.3at

PoE Power Pin:End-span: 1/2(-), 3/6(+)

PoE PortPorts: 1 to 4

Max. Port Power:30 W

PoE Power Budget:60 W

عام

Dimensions: (W × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)

ShellMetal: material, fan-free design

Gross Weight:0.84 kg (1.85 lb)

Net Weight:0.26 kg (0.57 lb)

Operating Temperature:-10 °C to 55 °C (14 °F to 131 °F)

Operating Humidity:5% to 95% (no condensation)

Storage Temperature:-40 °C to 85 °C (-40 °F to 185 °F)

Storage Humidity:5% to 95% (no condensation)

Power Supply:48 VDC, 1.35 A

Power Consumption In Idle:5 W

Max. Power Consumption:65 W
